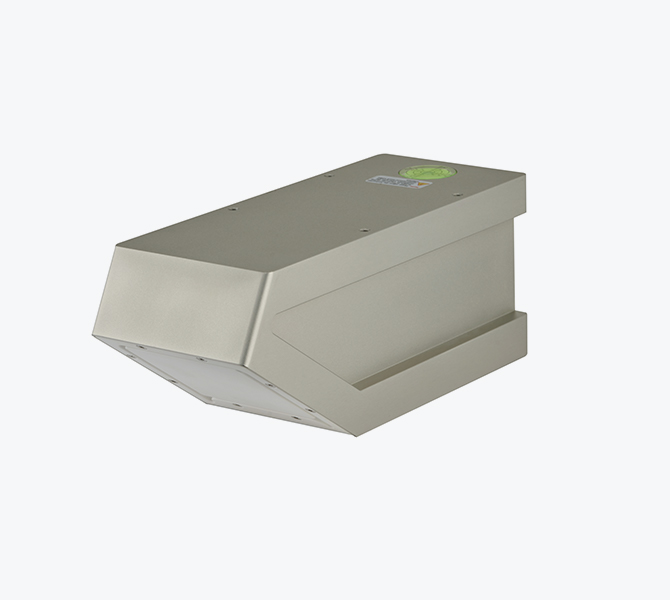

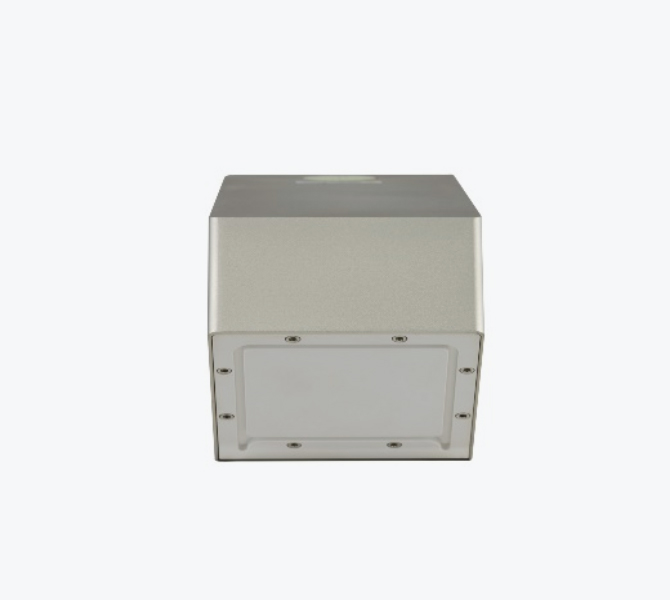

A product that measures water level and flow velocity in real time for reservoirs, rivers, and open channels
| Water level radar | Flow velocity radar | |
|---|---|---|
| Power | 12 VDC | |
| Power consumption | Operating mode : 150mA, Standby mode : ＜1 mA | |
| Radar frequency | 80 GHz | 24 GHz |
| Range of measuremen | 40 meters | 0.03~20 m/s |
| Radar power | 100 mw | |
| Operating environment | Temp. (-30 ~ 80℃), IP68 | |
| Size | 255 × 100 × 104mm | |
Flow Velocity
Measures flow velocity by analyzing frequency changes in waves caused by relative motion, reflected off the water surface using the Doppler effect.
Water Level
To measure water level, radar waves are transmitted to the water surface, and the time taken for the reflection to return is converted into distance.

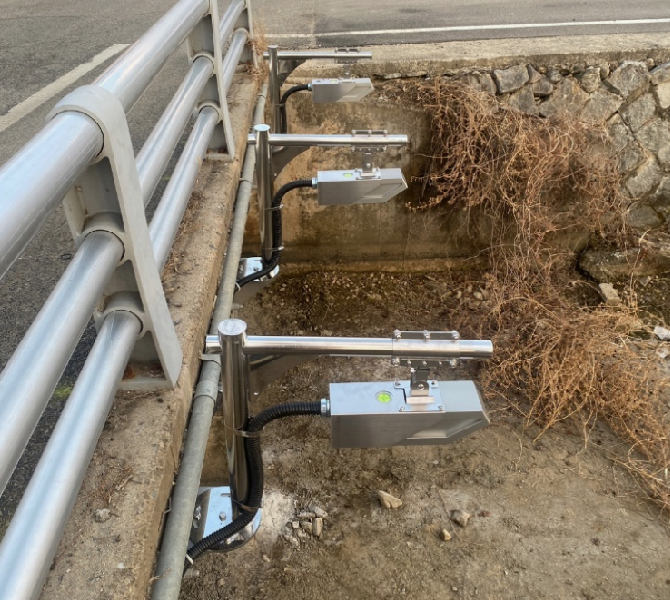

Easy installation due to the integrated water level and flow velocity structure
Water level radar (80 GHz) KC certified
Flow velocity radar (24 GHz) KC certified
Suitable for harsh external environments (IP68 rating)
Non-contact integrated flow monitoring system
Noise cancellation to prevent interference from rain (rain mode available)
Lightning protection feature
Measures water level and flow velocity with radar at a single point
Data storage
Hydrological measurements (river monitoring)
Sewer flow measurements
Smart integrated management system for reservoirs
Smart measurement system for small rivers
Urban flood prevention system
